The BUF20800ATDCPRQ1 by Texas Instruments is a sophisticated IC designed specifically for automotive applications, ensuring robust performance under stringent conditions. It is AEC-Q100 qualified, meeting high standards for temperature and electrostatic discharge (ESD) resistance, including Device Temperature Grade 1 and ESD classifications of Level 2 for Human Body Model and Level C4 for Charged Device Model. This makes it exceptionally reliable in automotive environments where durability and precision are critical.
This device features an 18-channel gamma correction capability and two channels for programmable VCOM outputs, supporting up to 50 mA of output current each, which are essential for driving modern TFT-LCD displays. It operates efficiently with a low supply current of 900μA per channel and supports a wide range of supply voltages, from 7V to 18V for analog and 2V to 5.5V for digital operations. The BUF20800ATDCPRQ1 also offers 10-bit resolution and rail-to-rail output, enhancing display quality through dynamic gamma control and replacing traditional resistor-based gamma solutions. Additionally, it includes an I2C interface capable of high-speed mode operation at 3.4 MHz, making it highly adaptable for sophisticated automotive display systems. Texas Instruments also provides a demo board and software for development support, facilitating easier integration and testing.

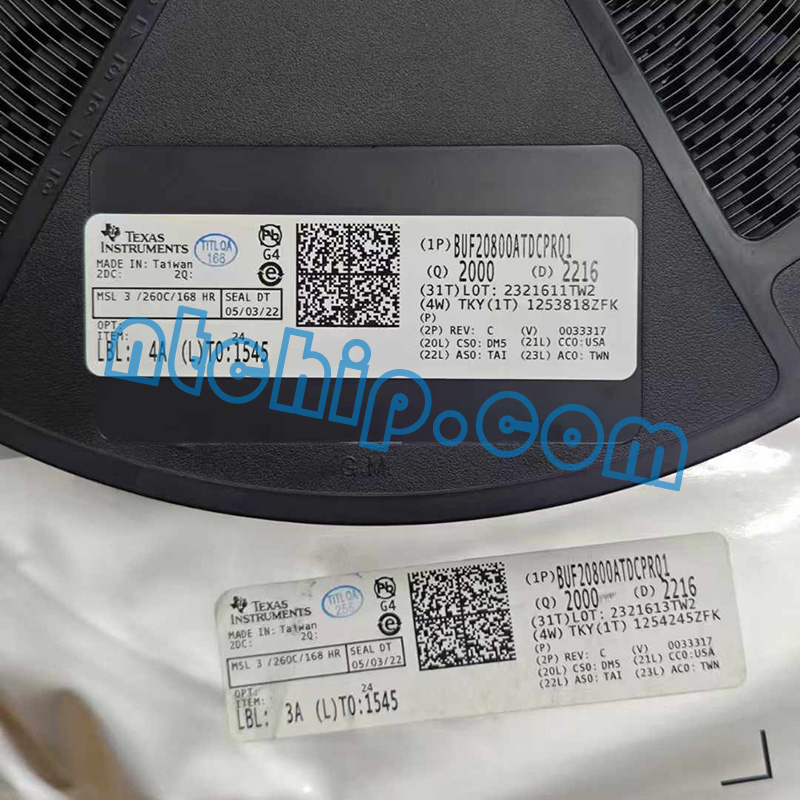

Texas Instruments BUF20800ATDCPRQ1 Package Original Label
Nantian Electronics, a professional distributor of Texas Instruments, stocks a large quantity of BUF20800ATDCPRQ1 components and offers comprehensive support including datasheets, pin diagrams, and other technical resources to assist with your project needs.
