Discrete semiconductors Definition

What are discrete devices? The term "discrete" for discrete devices refers to integrated circuits. A discrete device is a single device with a single basic function. Discrete devices can be said to be the "ancestors" of integrated circuits. The first diode appeared in 1947. , about 10 years earlier than the earliest integrated circuits.
Integrated circuits are formed by integrating a large number of electronic components, including discrete devices, on a wafer. If an integrated circuit integrates thousands of PN junctions onto a wafer, discrete devices only form one or a small number of PN junctions on the wafer. knot to implement some relatively simple functions.

What is Discrete semiconductors

Discrete semiconductors refer to individual semiconductor devices that function independently and are not integrated into a larger circuit or system. These components perform specific electronic functions and can be used individually or in combination with other discrete semiconductor devices to create electronic circuits.

Some common examples of discrete semiconductor devices include diodes, transistors, thyristors, LEDs, photodiodes, and Zener diodes, among others. Each of these devices serves a particular purpose in electronic systems.

Type of Discrete semiconductors

Discrete semiconductors represent individual semiconductor devices that perform distinct electronic functions and are not integrated into larger circuits. Here are some common types of discrete semiconductor devices:

Rectifier Diodes

These diodes permit the flow of current in only one direction and are commonly used in converting alternating current (AC) to direct current (DC). They are essential components in power supplies, ensuring that electrical devices receive the required DC power.

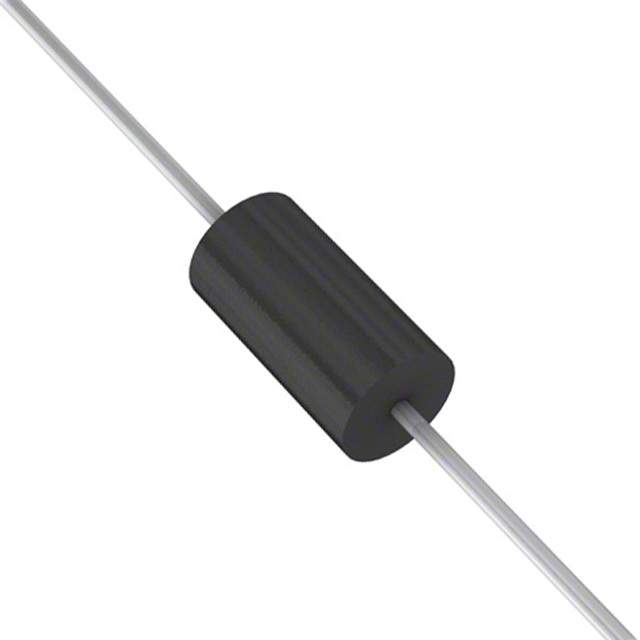

rectifier diodes

Zener Diodes

Zener diodes are specifically designed to maintain a constant voltage across their terminals. They are utilized in voltage regulation and protection circuits, where they stabilize voltage and provide overvoltage protection.

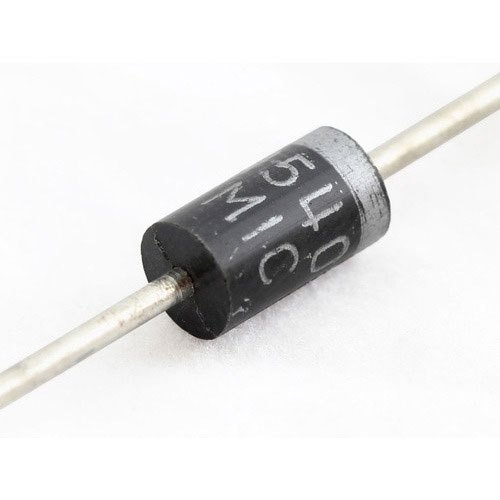

Zener Diodes.jpg

Light-Emitting Diodes (LEDs)

LEDs emit light when a current passes through them. They are extensively used in a wide range of applications, including displays, indicators, lighting systems, automotive lighting, and various consumer electronics due to their energy efficiency and long life.

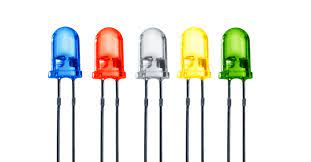

The different colors of light-emitting diodes

Bipolar Junction Transistors (BJTs)

BJTs are semiconductor devices that amplify or switch electronic signals. They are commonly used in various electronic circuits, including audio amplifiers, digital logic circuits, and as switching devices in electronic systems.

Field-Effect Transistors (FETs)

FETs are commonly used in amplifiers and digital circuits. In power electronics, they are crucial for various functionalities, such as signal amplification and switching.

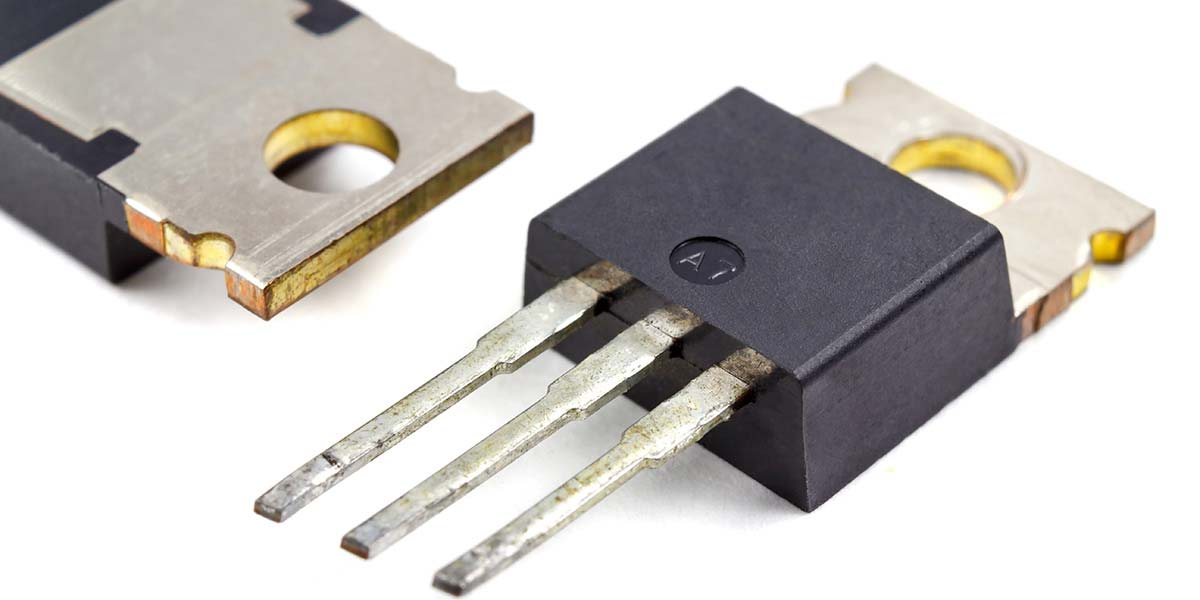

Field-Effect Transistors.jpg

Silicon-Controlled Rectifiers (SCRs)

SCRs are used in controlling high-power circuits by allowing current flow after a triggering signal. They are commonly found in applications such as motor control, power regulation, and in some types of industrial control systems.

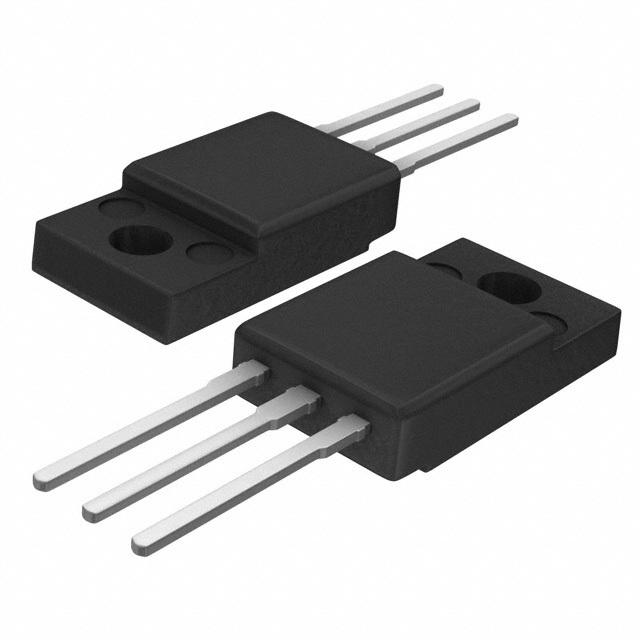

Silicon-Controlled Rectifiers

TRIACs

TRIACs are devices designed to control the flow of AC power. They are widely used in devices like dimmer switches, speed controllers for electric motors, and other AC power control applications.

TRIACs Symbol

Photodiodes

These devices convert light into electrical current. They are frequently used in light sensors, optical communication systems, and in applications requiring light detection or measurement.

Photodiodes

Phototransistors

Similar to photodiodes, phototransistors convert light into electrical signals, but they also provide amplification of the generated current. They are found in similar applications where higher sensitivity or amplification is required.

Phototransistors

Schottky Diodes

Schottky diodes are known for their fast switching capabilities and low forward voltage drop. They are ideal for high-frequency applications due to their fast response times and low power loss.

Varactor Diodes (Varicap Diodes)

These diodes are used in tuning circuits and voltage-controlled oscillators, particularly in communication systems where frequency modulation or tuning is required.

Avalanche Diodes

Employed in microwave applications and as protection devices against voltage surges in electronic circuits. They utilize the avalanche breakdown effect for noise generation and voltage protection.

Avalanche Diodes

These discrete semiconductor devices play crucial roles in various electronic systems, offering distinct functionalities and characteristics for different applications within industries like telecommunications, power electronics, lighting, and more.

What are Discrete Semiconductors Used For?

Discrete semiconductors play essential roles in various electronic applications across industries due to their distinct functionalities. Rectifier diodes are fundamental in power supplies, converting AC to DC for providing appropriate voltage to electronic devices. Zener diodes ensure voltage stability in regulation circuits, guarding against fluctuations. Light-Emitting Diodes (LEDs) are extensively used in lighting, displays, and consumer electronics due to their energy efficiency and durability.

Bipolar Junction Transistors (BJTs) and Field-Effect Transistors (FETs) serve in amplifiers and digital circuits for signal amplification and electronic switching. Silicon-Controlled Rectifiers (SCRs) and TRIACs control high-power circuits in applications like motor control and industrial systems. Optical components such as photodiodes and phototransistors find use in light sensors and optical communication systems.

Schottky diodes are crucial in high-frequency applications, offering fast response times. Varactor diodes tune circuits and oscillators in communication systems. Avalanche diodes are used for voltage protection and noise generation in circuits. These discrete semiconductor devices cater to a wide array of functions, encompassing power control, regulation, signal processing, communication, lighting, and protection, contributing significantly to the construction of electronic systems across industries.

What are the active components of discrete semiconductor devices?

The active components within discrete semiconductor devices primarily include transistors and diodes. Transistors, such as Bipolar Junction Transistors (BJTs) and Field-Effect Transistors (FETs), serve as the key active elements.
