The Ultimate Guide to Infineon EconoPACK Power Modules: Technology and Selection

What is the Infineon EconoPACK

The Infineon EconoPACK is a highly reliable, compact power module series tailored specifically for modern industrial applications by Infineon Technologies. In the power electronics industry—particularly within the motor control, servo drive, and general-purpose inverter markets—the EconoPACK has firmly established itself as an industry-standard housing thanks to its exceptional electrical performance and highly integrated packaging design.

It delivers efficient and stable power conversion even in harsh industrial environments, effectively reducing the system footprint and lowering the total cost of ownership (TCO). Whether utilizing proven Silicon (Si) IGBT modules or integrating cutting-edge CoolSiC silicon carbide technology, the EconoPACK housing adapts perfectly, offering power electronics engineers unparalleled design flexibility.

The Design Intent and Evolution of EconoPACK

The early development of industrial inverters and servo drives often faced a core challenge: How do you handle increasingly higher power outputs within a highly constrained physical space, while ensuring excellent thermal management and resistance to mechanical stress (like vibration) The EconoPACK family was born specifically to solve this pain point.

Its original design intent was to provide the market with a standardized packaging solution characterized by high power density, cost-effectiveness, and ease of automated assembly.

Looking back at its evolution, it has been a continuous journey of breaking through technical bottlenecks:

• The Classic Foundation: The initial EconoPACK 1, 2, and 3 series quickly set the benchmark for the medium-power inverter market, defining the industrial packaging standards of their time.

• The Leap in Power Density: To meet the demands for higher current handling and more stringent thermal management, Infineon introduced the EconoPACK 4 series, which further optimized the internal layout and heat dissipation.

• The High-Power Breakthrough: The EconoPACK+ was developed to target megawatt-level (MW) applications, such as wind power generation and commercial solar inverters.

• The Revolution in Assembly: During this evolution, Infineon pioneered the integration of PressFIT technology (cold press-fit pins) and pre-applied Thermal Interface Material (TIM) into EconoPACK modules. This completely revolutionized the PCB assembly process, drastically reducing production costs and enhancing long-term system reliability.

Core Topology Overview (Six-Pack, PIM, and More)

To meet the diverse needs of various industrial scenarios, EconoPACK modules integrate a variety of highly efficient circuit topologies, enabling hardware engineers to achieve "plug-and-play" modular designs. The most common core topologies include:

• Six-Pack Topology (FS): This is the most classic three-phase inverter topology. The module integrates six IGBT switches and their corresponding freewheeling diodes. It is ideal for standard AC motor drive output stages, Uninterruptible Power Supplies (UPS), and photovoltaic (PV) inverters.

• Power Integrated Module (PIM / CIB): Also commonly referred to as the CIB (Converter-Inverter-Brake) topology. Within a single, compact housing equipped with a copper baseplate, it highly integrates a three-phase rectifier (Converter), a brake chopper, and a three-phase inverter. This "all-in-one" design significantly reduces external component count and stray inductance, making it the dominant solution for compact industrial inverters.

• Half-Bridge Topology: For higher power ranges (for instance, when utilizing the EconoPACK+), modules typically adopt a half-bridge topology. Engineers can parallel multiple half-bridge modules to flexibly construct high-power, high-current inverter systems.

Core Technologies and Advantages of EconoPACK Housing

Why has the Infineon EconoPACK remained an industry benchmark for decades The answer lies in its sophisticated mechanical design and internal technical features. It is not just a plastic shell; it is a precision-engineered environment designed to maximize the performance of IGBT modules and CoolSiC MOSFETs. By breaking down its internal architecture, we can see how it balances electrical efficiency with mechanical robustness.

Integration of High Power Density and Compact Design

The hallmark of the EconoPACK series is its ability to pack immense power into a small footprint. Industrial designers are constantly pressured to reduce the size of control cabinets, and the EconoPACK addresses this by:

• Minimized Stray Inductance: The internal layout is optimized to reduce parasitic effects, allowing for faster switching speeds and reduced voltage overshoots.

• Space-Saving Footprint: By integrating multiple components (like the Converter-Inverter-Brake in a PIM topology) into a single housing, it eliminates the need for bulky discrete components and complex busbar interconnections.

• Scalability: From the small EconoPACK 1 to the robust EconoPACK 4, the family offers a scalable approach, allowing engineers to increase power output without drastically changing the system architecture.

PressFIT Technology vs. Solder Technology: Enhancing Reliability

One of the most significant innovations Infineon brought to the EconoPACK family is PressFIT technology. This "cold" connection method offers a superior alternative to traditional soldering:

• Reliability: Unlike solder joints, which are prone to "fatigue" and cracking over thousands of thermal cycles, the PressFIT connection creates a gas-tight, vibration-resistant bond.

• Process Efficiency: PressFIT eliminates the need for wave soldering. This reduces the thermal stress on the PCB during manufacturing and avoids common soldering defects like cold joints or solder bridges.

• Easy Maintenance: Modules can be replaced more easily without the risk of damaging the PCB traces through desoldering.

• Comparison Table at a Glance:

• Solder: High thermal stress, prone to aging, manual inspection required.

• PressFIT: No heat required, extremely low failure rate (FIT rate), automated assembly friendly.

Superior Thermal Management and Baseplate Cooling

Heat is the ultimate enemy of power electronics. To ensure long-term stability, EconoPACK modules utilize advanced thermal management strategies:

• Solid Copper Baseplate: Unlike "baseless" modules (like the EasyPACK), the EconoPACK features a thick copper baseplate. This acts as a heat spreader, rapidly pulling heat away from the silicon chips and distributing it across the heatsink surface.

• Optimized Internal Insulation: The ceramic substrate (typically Alumina or Aluminum Nitride) provides high electrical isolation while maintaining low thermal resistance Rth.

• Pre-applied TIM (Thermal Interface Material): To eliminate the "human error" factor during assembly, many EconoPACK modules come with Pre-applied TIM. This ensures an optimal, honeycomb-patterned layer of thermal grease that fills every microscopic void between the module and the heatsink, significantly lowering the junction temperature and extending the module’s lifespan.

The EconoPACK Family: Evolution and Series Comparison

The Infineon EconoPACK family is not a "one-size-fits-all" solution. It has evolved into a diverse portfolio designed to cover everything from small servo drives to massive wind turbine converters. Understanding the nuances between EconoPACK 1, 2, 3, 4, and EconoPACK+ is essential for optimizing system cost and performance.

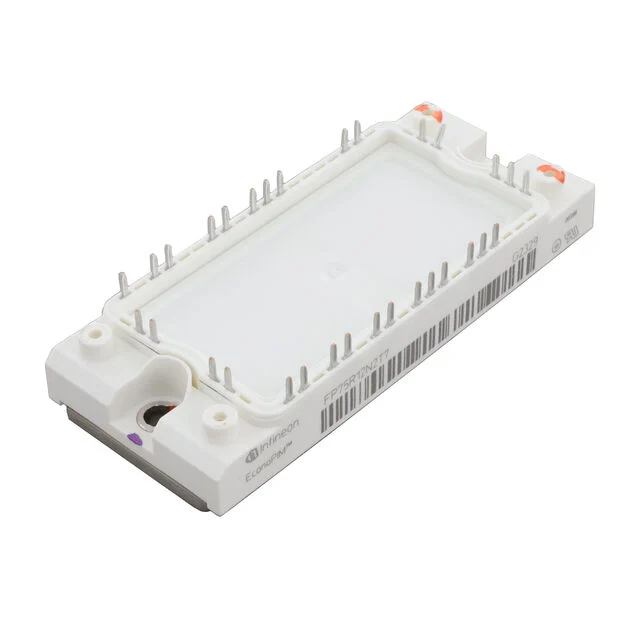

Infineon FP75R12N2T7 EconoPIM? 2

EconoPACK 1, 2 & 3: The Foundations of Reliability

These three generations represent the "classic" EconoPACK design. They are the workhorses of the industrial world, found in millions of motor drives globally.

• EconoPACK 1: The smallest in the footprint, typically used for low-to-medium power applications. It is the go-to choice for compact 15A to 50A (at 1200V) inverters.

• EconoPACK 2 & 3: These offer larger footprints to accommodate more silicon area, allowing for higher current ratings. While they share a similar design language, the EconoPACK 3 is optimized for higher current densities, often reaching up to 150A or 200A in a Six-Pack topology.

• Key Feature: These series are characterized by their copper baseplates and the option for PressFIT technology, making them incredibly robust against thermal cycling in standard industrial environments.

EconoPACK 4: The Next Step in Power Density

As industrial demands moved toward even smaller control cabinets, Infineon introduced the EconoPACK 4. This series was a major leap forward in internal layout optimization.

• Enhanced Terminal Layout: The EconoPACK 4 features a more symmetrical internal design, which significantly lowers stray inductance. This is crucial for high-speed switching and minimizing voltage spikes (V = L * di/dt).

• Higher Current Capability: By utilizing advanced IGBT4 and IGBT7 chips, the EconoPACK 4 can handle currents that previously required much larger modules, making it the "gold standard" for high-performance 200A to 400A industrial drives.

EconoPACK+: The Heavy-Duty Solution for Megawatt Applications

When applications scale into the hundreds of kilowatts or even megawatts (MW), the standard EconoPACK footprint is no longer enough. This is where the EconoPACK+ takes over.

• Designed for the Grid: Primarily used in large-scale solar inverters, wind power converters, and heavy-duty industrial drives.

• Parallelability: The mechanical design of the EconoPACK+ allows for easy paralleling of modules. This "building block" approach enables engineers to scale systems up to several megawatts without complex busbar redesigns.

• Ruggedness: It is engineered to withstand the extreme environmental conditions often found in renewable energy sites.

Cross-Series Comparison Table

To help you quickly identify the right module for your project, here is a breakdown of the typical ratings across the family:

This section highlights the versatility of the Infineon EconoPACK series, showcasing why it is the preferred choice across diverse and demanding industries.

Key Application Areas of EconoPACK in Modern Industry

The success of the EconoPACK housing lies in its "industrial-grade" DNA. It is engineered to perform in environments where dust, vibration, and extreme temperature fluctuations are the norm. By providing a standardized platform for IGBT modules and CoolSiC technology, Infineon has enabled innovation across several critical sectors.

Industrial Drives and Motor Control (Inverters, Servo Drives)

This is the "home turf" for the EconoPACK series. In the world of Factory Automation, precision and efficiency are non-negotiable.

• General Purpose Inverters: EconoPACK 2 and 3 modules are the standard building blocks for variable speed drives (VSD). They allow for precise control of AC motors, significantly reducing energy consumption in pumps, fans, and conveyor systems.

• Servo Drives: For high-dynamic applications like robotics and CNC machines, the compact PIM (Converter-Inverter-Brake) topology of the EconoPACK 1 and 2 provides the necessary power density to fit into slim control cabinets while maintaining high switching accuracy.

Renewable Energy Systems (Solar Inverters and Wind Converters)

As the world shifts toward green energy, the EconoPACK family plays a vital role in power conversion efficiency.

• Photovoltaic (PV) Inverters: In commercial and utility-scale solar arrays, EconoPACK 4 and EconoPACK+ modules convert the DC power from panels into grid-compliant AC power. Their low-inductive design is perfect for the high-frequency switching required to maximize energy harvest (MPPT).

• Wind Power Converters: The EconoPACK+ is specifically favored in wind turbines. These modules handle the massive currents generated by the turbine and are built to withstand the "thermal cycling" caused by fluctuating wind speeds, ensuring a service life that matches the turbine's 20-year roadmap.

Commercial, Construction, and Agricultural Vehicles (CAV)

Beyond the factory floor, EconoPACK is moving into the "electrification of everything" space.

• Elevators and Escalators: The high reliability and quiet operation (thanks to optimized switching) of EconoPACK modules make them ideal for urban infrastructure.

• Agricultural & Construction Machinery: From electric tractors to hybrid excavators, the ruggedized nature of the EconoPACK housing—especially when paired with PressFIT technology—allows it to survive the intense mechanical shocks and vibrations typical of off-road environments.

• Auxiliary Inverters: In large commercial vehicles, these modules power auxiliary systems like air conditioning compressors and hydraulic pumps, contributing to the overall electrification of the transport sector.

Material Innovation: Silicon (Si) IGBT vs. CoolSiC in EconoPACK

The power electronics industry is currently undergoing a "material revolution." While Silicon (Si) based IGBT modules have been the industry workhorse for decades, Wide Bandgap (WBG) materials like Silicon Carbide (SiC) are setting new records for efficiency. The beauty of the Infineon EconoPACK series is its "package-ready" compatibility with both technologies.

The Proven Standard: Silicon (Si) IGBTs

For the majority of standard industrial applications, Silicon-based IGBTs (such as the IGBT4 and the latest IGBT7) remain the most cost-effective solution.

• Reliability: Decades of field data prove their durability.

• IGBT7 Advantage: The newer IGBT7 chips integrated into EconoPACK 2 and 3 housings offer lower power losses and higher power density, specifically optimized for variable speed drive (VSD) applications.

The Game Changer: CoolSiC MOSFETs

By housing CoolSiC MOSFET technology within the EconoPACK 2 and 4 footprints, Infineon has opened the door to ultra-high efficiency designs. Moving from Silicon to Silicon Carbide brings three transformative benefits:

1. Massively Reduced Switching Losses: CoolSiC technology can reduce switching losses by up to 80% compared to traditional IGBTs. This allows for significantly higher switching frequencies (fsw) without overheating the module.

2. Increased Switching Frequency: Higher frequencies mean that passive components in the system—such as inductors, capacitors, and transformers—can be made much smaller and lighter. This results in a smaller overall system footprint and reduced material costs.

3. Superior Thermal Conductivity: SiC naturally handles higher temperatures better than Si. When paired with the EconoPACK copper baseplate, the heat dissipation is incredibly efficient, allowing for higher output power in the same physical space.

Why Choose CoolSiC in an EconoPACK Housing?

The primary advantage for engineers is design continuity. Because Infineon offers CoolSiC in the standard EconoPACK 2 and EconoPACK 4 packages, manufacturers can:

• Keep their existing cooling systems and mechanical layouts.

• Upgrade their "Premium" product lines to SiC while keeping "Standard" lines on IGBTs.

• Achieve system efficiency ratings exceeding 99%, which is critical for high-end solar inverters and fast-charging EV infrastructure.

Engineer's Guide: How to Select the Right EconoPACK Module

Selecting a power module is more than just matching a part number; it is about balancing electrical performance, thermal limits, and mechanical integration. When choosing an Infineon EconoPACK for your project, following a structured evaluation process will save significant R&D time and prevent field failures.

Step 1: Evaluate Power Requirements (Voltage and Current Ratings)

The first filter is always the electrical stress. You must define the "Worst Case" operating conditions for your system.

• Voltage Margin: For a 400V DC-link system, a 1200V EconoPACK is the industry standard to provide a safe margin against switching spikes. For 690V systems, you must step up to 1700V modules.

• Current Handling: Remember that the "nominal current" (Inom) listed in the datasheet is often rated at a specific case temperature (e.g., Tc = 80C or 100C). Always calculate your RMS current based on your specific switching frequency (fsw) and cooling capability.

• Overload Capacity: Consider if your motor drive needs a "Heavy Duty" rating (e.g., 150% overload for 60 seconds). EconoPACK 3 and 4 are particularly robust for these high-torque startup scenarios.

Step 2: Determine the Required Topology

The EconoPACK family offers incredible internal flexibility. Choosing the right integrated topology can drastically simplify your PCB layout.

• For Compact Inverters: Choose the PIM (Power Integrated Module) topology. Having the input rectifier, the brake chopper, and the inverter stage in one EconoPACK 2 housing saves massive amounts of board space.

• For Standard Motor Drives: The Six-Pack (FS) configuration is the most common. It provides the three-phase bridge needed to drive AC motors efficiently.

• For High-Power Modular Designs: If you are building a system above 100kW, consider using Half-Bridge modules in an EconoPACK 4 or EconoPACK+ footprint. This allows you to parallel modules to reach the desired current level.

Step 3: Thermal Design and Installation Best Practices

Heat is the number one killer of IGBTs. Even the best module will fail if the thermal path to the heatsink is poorly managed.

• The Power of Pre-applied TIM: We highly recommend selecting EconoPACK variants with Pre-applied Thermal Interface Material (TIM). This factory-applied, honeycomb-patterned grease ensures a consistent thickness and eliminates air gaps, which can lower the junction temperature (Tj) by several degrees compared to manual application.

• PressFIT vs. Solder: If your production line is automated, PressFIT technology is the superior choice. It provides a more reliable mechanical connection and avoids the thermal stress of wave soldering on the PCB.

• Heatsink Quality: Ensure your heatsink surface flatness is within Infineon specifications (typically less than 50 micrometers per 100mm). An uneven surface will create hot spots, even with the best copper baseplate.

Conclusion

In the rapidly evolving world of power electronics, the Infineon EconoPACK series remains a cornerstone of reliability and innovation. From its compact EconoPACK 1 origins to the high-power EconoPACK+ solutions, this family offers a standardized platform that scales with your project needs.

By integrating advanced features like PressFIT technology, pre-applied thermal interface materials, and the latest CoolSiC MOSFET chips, Infineon ensures that engineers can achieve higher efficiency and better thermal management without increasing system complexity. Whether you are designing a compact servo drive or a megawatt-scale wind converter, the EconoPACK housing provides the professional-grade performance required for modern industrial success.

Frequently Asked Questions about EconoPACK

What is the main difference between EconoPACK and EasyPACK modules?

The primary difference is the baseplate. EconoPACK modules feature a solid copper baseplate, which provides superior heat spreading and mechanical robustness for medium-to-high power applications. EasyPACK modules are typically "baseless," making them more cost-effective and flexible for lower power ranges where extreme compact design is the priority.

Can I replace a standard IGBT EconoPACK with a CoolSiC version?

Yes, in many cases. Infineon designs CoolSiC MOSFETs to fit within standard EconoPACK 2 and EconoPACK 4 footprints. However, you must update your gate driver circuit, as SiC MOSFETs require different driving voltages and have much faster switching speeds compared to traditional IGBTs.

What are the benefits of using PressFIT pins instead of soldering?

PressFIT technology creates a gas-tight mechanical connection that is highly resistant to vibration and thermal aging. It eliminates the need for wave soldering, which reduces the thermal stress on your PCB and simplifies the automated assembly process, leading to lower manufacturing failure rates.

What voltage classes are available for EconoPACK modules?

The EconoPACK family covers the most common industrial voltage classes, including 600V, 650V, 1200V, and 1700V. This range supports applications from standard 230V/400V AC grids up to heavy-duty 690V industrial and renewable energy networks.
