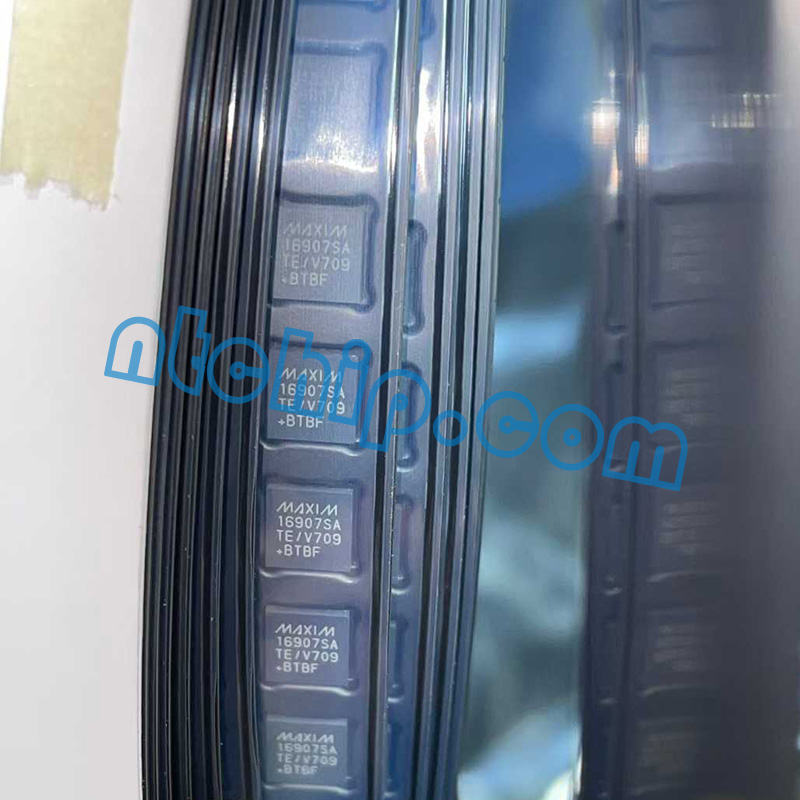

The MAX16907SATE/V+T by Maxim Integrated is a robust, high-efficiency automotive-grade step-down converter designed to manage a wide range of power supply requirements. This device supports a broad input voltage range from 3.5V to 36V, making it exceptionally versatile for applications that experience varying input conditions. It can handle up to 42V input transients, ensuring reliability under stressful conditions such as undervoltage transients where it maintains high duty cycle performance. The output voltage is highly flexible, offering a fixed 5V or an adjustable range from 1V to 10V, complemented by an integrated 3A internal high-side switch with a typical resistance of 70mΩ.
Key features of the MAX16907SATE/V+T include its fast load-transient response and current-mode architecture which enhance its performance in dynamic load conditions. The device allows for an adjustable switching frequency between 1MHz and 2.2MHz and can be synchronized with an external frequency, minimizing interference through its optional spread spectrum capability. It operates with a low standby mode current of 30μA and a typical shutdown current of just 5μA, optimizing power usage in idle states. Comprehensive protection mechanisms against overvoltage, undervoltage, overtemperature, and short circuits ensure the safety and durability of the application.
Available through Nantian Electronics, this converter is supported with detailed datasheets and pin diagram instructions, making integration into projects straightforward and reliable.
