The 74LVCH8T245PW,118 from Nexperia USA Inc. is an advanced 8-bit dual-supply bus transceiver designed for seamless voltage-level translation between different logic families. With a wide supply voltage range of 1.2V to 5.5V on both VCC(A) and VCC(B), it provides exceptional flexibility for interfacing between low-voltage and high-voltage systems. This device ensures high noise immunity and complies with multiple JEDEC standards, making it a reliable choice for modern digital circuits. It supports bidirectional data flow with a direction control pin, allowing efficient communication between different voltage domains. Additionally, its robust ESD protection exceeds 4000V (HBM), 200V (MM), and 1000V (CDM), ensuring durability in harsh environments.

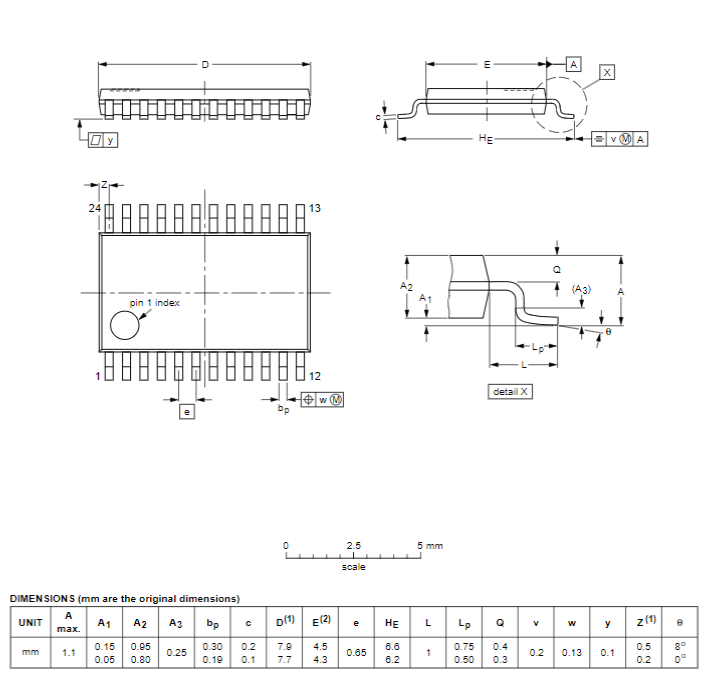

Nexperia USA Inc. 74LVCH8T245PW,118 Dimensions:
Optimized for high-speed applications, the 74LVCH8T245PW,118 achieves maximum data rates of up to 420 Mbps when translating between 3.3V and 5.0V, making it ideal for high-performance signal processing. It also supports data rates of 210 Mbps for 3.3V translation, 140 Mbps for 2.5V, and 75 Mbps for 1.8V, ensuring reliable operation across various voltage levels. This transceiver is well-suited for use in computing, industrial automation, and consumer electronics where efficient voltage-level shifting is required. Nantian Electronics offers a large stock of 74LVCH8T245PW,118, along with datasheets and technical support to assist with seamless integration into your designs.

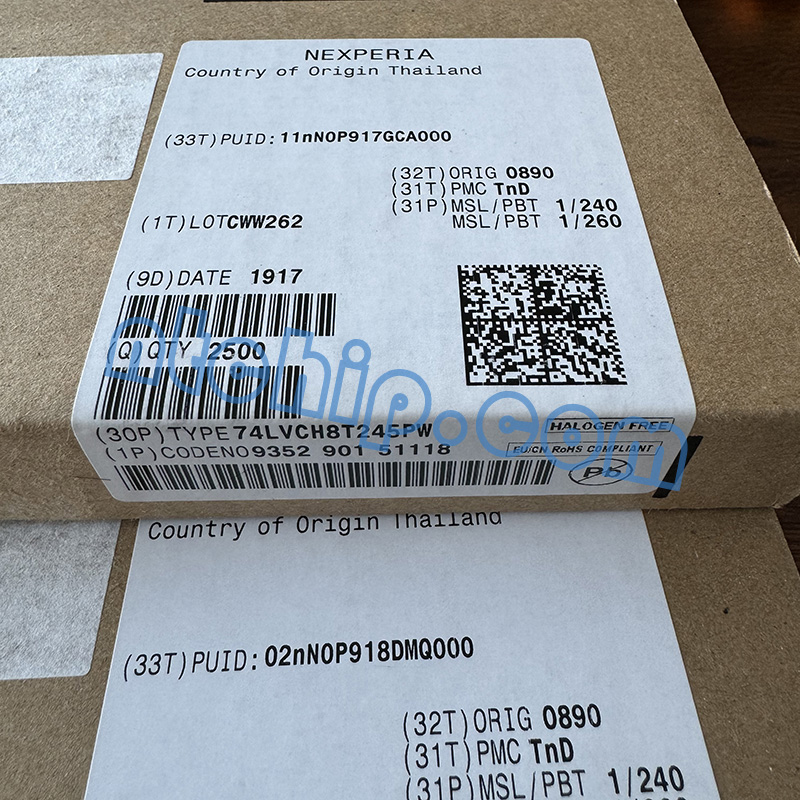

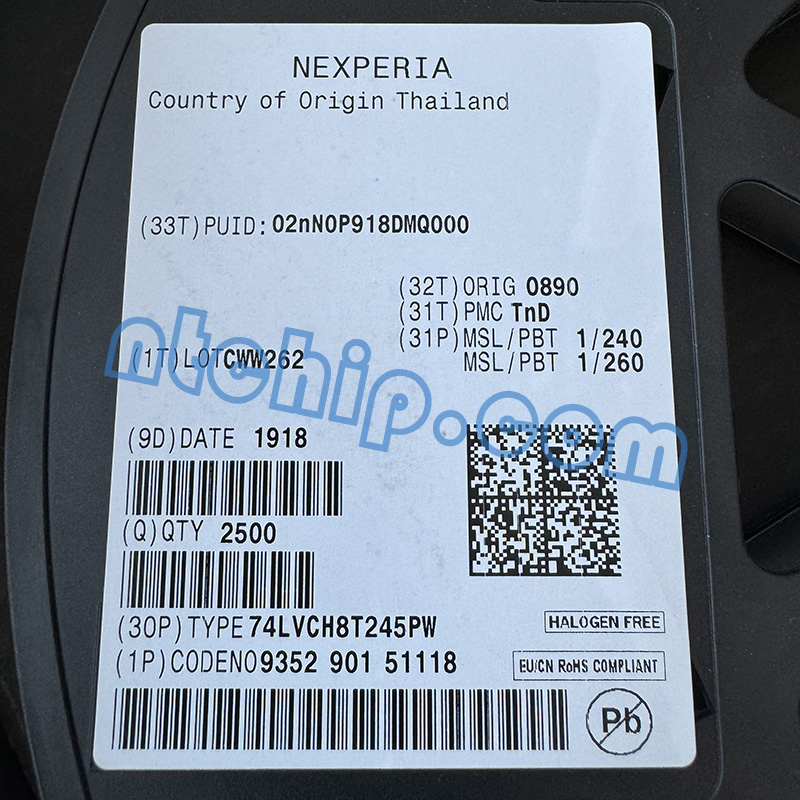

Nexperia USA Inc. 74LVCH8T245PW,118 Package Original Label
