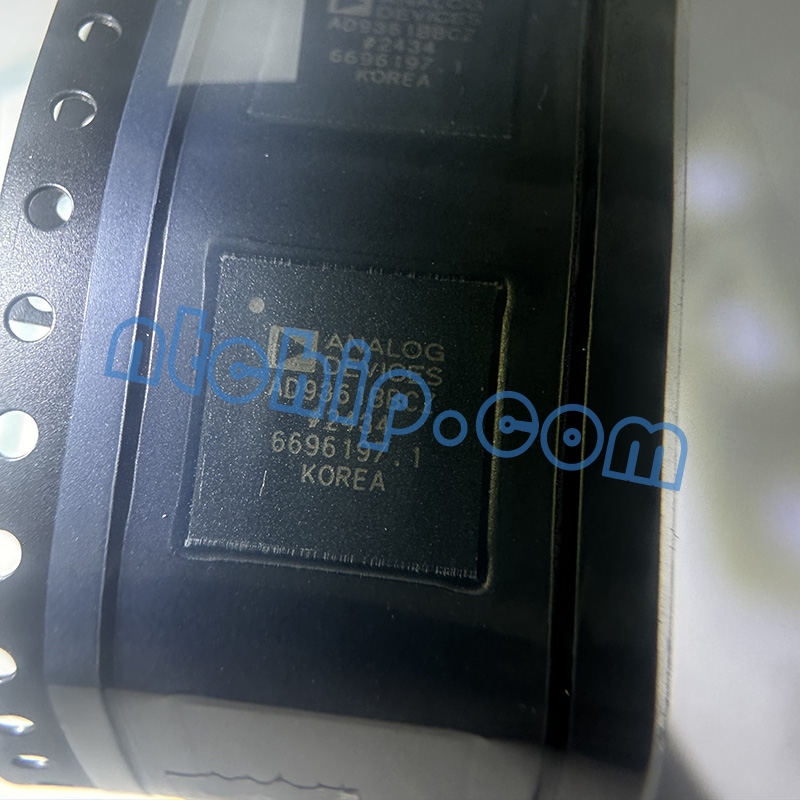

Analog Devices Inc. AD9361BBCZ-REEL

The AD9361BBCZ-REEL from Analog Devices Inc. is a highly integrated RF agile transceiver designed to simplify the development of modern wireless communication systems. Operating across a wide frequency range of 70 MHz to 6 GHz, it supports both Time Division Duplex (TDD) and Frequency Division Duplex (FDD) modes, making it versatile for various applications such as cellular networks, LTE systems, point-to-point communications, and software-defined radios. This device features a dual-channel 2×2 transceiver architecture that integrates 12-bit digital-to-analog converters (DACs) and analog-to-digital converters (ADCs), ensuring precise signal conversion and superior linearity. Its tunable channel bandwidth, ranging from less than 200 kHz to 56 MHz, provides excellent flexibility for optimizing performance across different communication standards and frequency bands.

With advanced design characteristics such as a noise figure of only 2 dB at 800 MHz LO, the AD9361BBCZ-REEL delivers outstanding receiver sensitivity and low signal distortion. It includes independent automatic and manual gain control options, real-time monitoring functions, and built-in fractional-N synthesizers with a fine 2.4 Hz local oscillator step size for accurate frequency synthesis. The transceiver also supports multichip synchronization, allowing multiple devices to operate in coordinated systems for complex wireless applications. Its 144-LFBGA (CSPBGA) package ensures compact integration while maintaining high performance and reliability. As an authorized distributor, Nantian Electronics maintains a large inventory of the AD9361BBCZ-REEL and provides full technical documentation, including datasheets and pin diagrams, to assist engineers in design and implementation. Customers are welcome to contact us for competitive pricing and professional support for all procurement needs.
