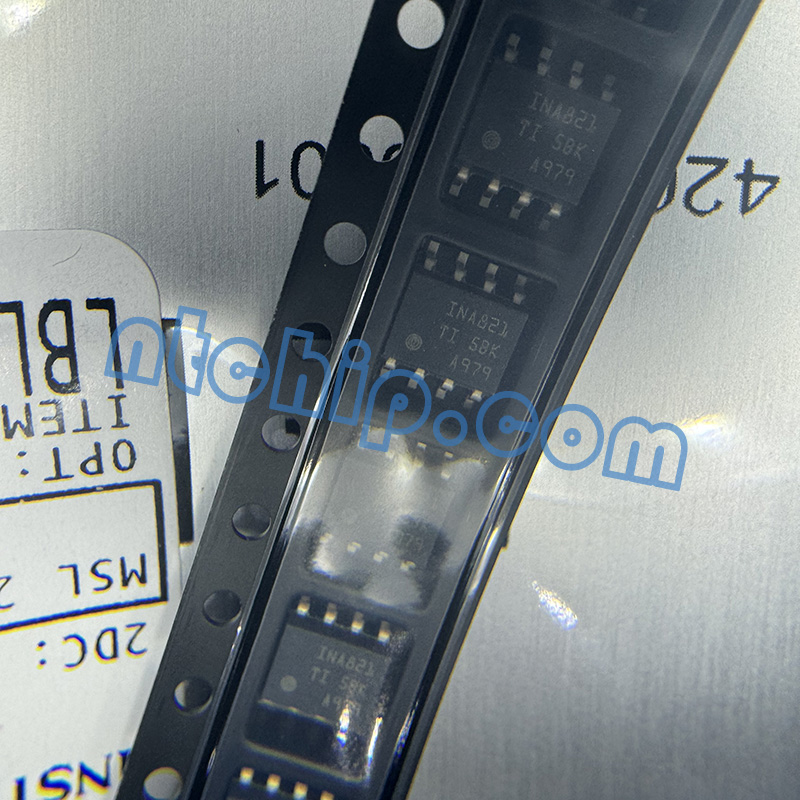

Q1: What are the main features of the INA821IDR?
A1: The INA821IDR is a precision instrumentation amplifier featuring very low input offset voltage (10 µV typical), low noise performance (7 nV/√Hz), high common-mode rejection ratio (up to 112 dB), and excellent power-supply rejection. It offers a wide supply voltage range from 4.5 V to 36 V (single supply) or ±2.25 V to ±18 V (dual supply), bandwidth up to 4.7 MHz at unity gain, low gain drift, and input protection up to ±40 V. These features make it ideal for high-accuracy signal conditioning applications.
Q2: What is the INA821IDR used for?
A2: The INA821IDR is commonly used in sensor signal amplification, data acquisition systems, industrial process control, medical instrumentation, weigh scales, pressure measurement equipment, test and measurement instruments, bridge amplifier circuits, and precision monitoring systems. It is particularly effective for amplifying very small differential signals while rejecting common-mode noise and interference.
Q3: Does the INA821IDR have alternative manufacturers and part numbers?
A3: Yes. Similar instrumentation amplifiers are available from manufacturers such as Analog Devices, Microchip Technology, Renesas Electronics, onsemi, and STMicroelectronics. Alternative devices should be selected based on factors such as gain accuracy, noise performance, bandwidth, power consumption, package type, and operating voltage requirements to ensure compatibility with the target application.
Q4: Is technical support available for this part?
A4: Yes. Technical support is available through Texas Instruments and its authorized distributors. Resources typically include datasheets, application notes, reference designs, simulation models, evaluation tools, and design documentation. Nantian Electronics can also provide product information, datasheet access, inventory availability, and technical assistance to help customers with component selection, circuit design, and procurement requirements.
